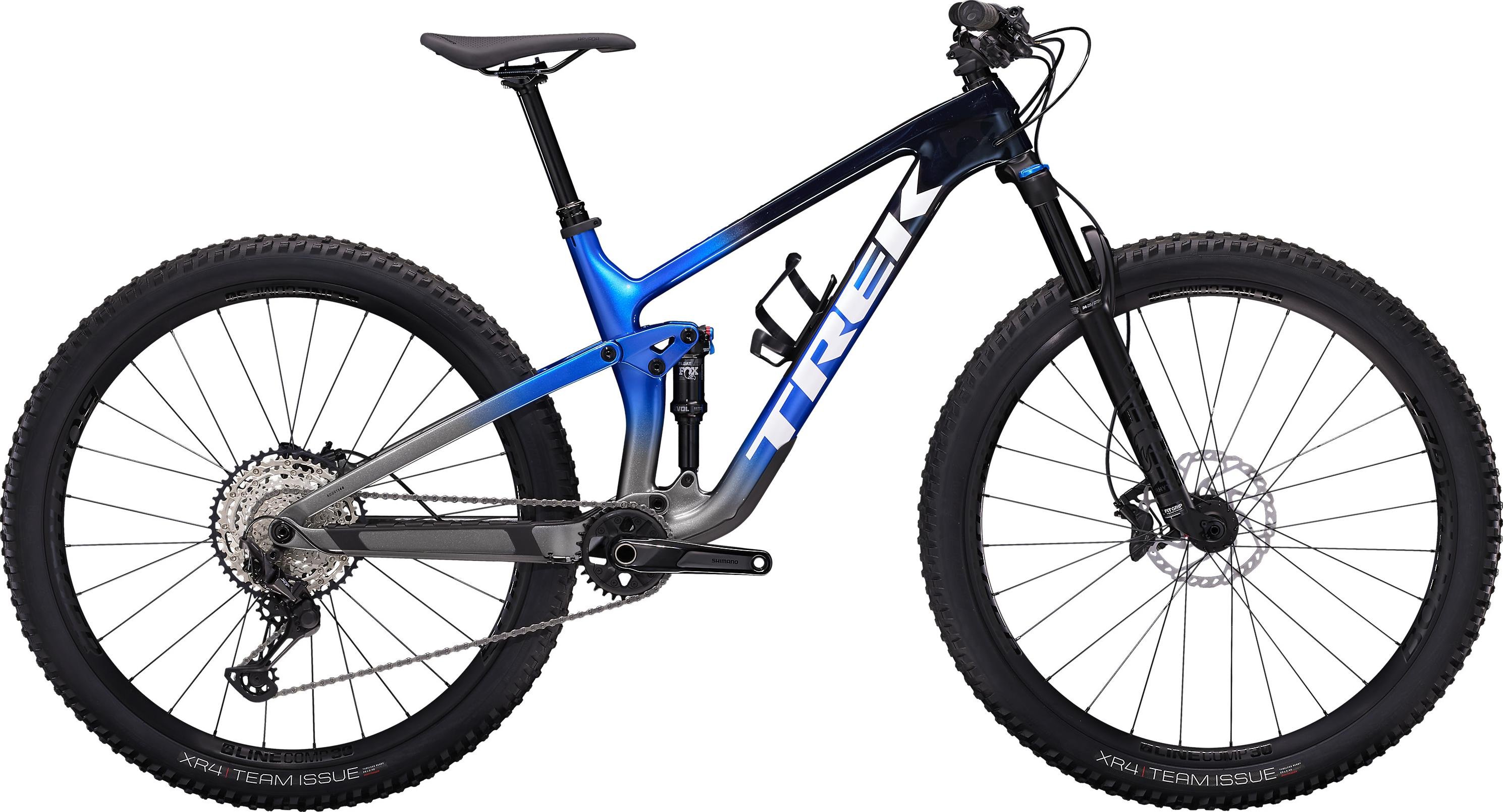

TrekTop Fuel 9.7 (29")
Unfortunately sold out.
This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.
Questions and Answers
General
- Weight*M - 13.38 kg / 29.51 lbs (with TLR sealant, no tubes)
- Frame OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
- Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Brakes
- Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
- RotorsShimano RT66, 6-bolt, 160mm / Shimano RT66, 6-bolt, 180mm *
Wheels & Tires
- Front WheelBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
- Rear WheelBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost148, 12mm thru axle, Size XS: Rapid Drive 54, Size S, M, M/L, L, XL: Rapid Drive 108
- Rear AxisBontrager Switch thru axle, removable lever
- TiresBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, Size XS: 27.5x2.40'', Size S, M, M/L, L, XL: 29x2.40''
Cockpit
- StemBontrager Elite, 35mm, 0 degree, 45mm length
- HeadsetKnock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
- HandlebarBontrager Line, alloy, 35mm, 27.5mm rise, Size XS, S: 750mm width, Size M, M/L, L, XL: 780mm width
- GripsBontrager XR Trail Comp, nylon lock-on
Groupset
- Cassette Shimano SLX M7100, 10-51T, 12 speed
- GearingShimano SLX/XT, 12fach
- CrankShimano Deore M6120, 30T ring, 55mm chainline, Size XS, S, M, M/L, L: 170mm length, Size XL: 175mm length
- Shifters Shimano XT M8100, 12 speed
- Bottom BracketShimano BB-MT501 BSA / Shimano SM-BB52, 73mm, threaded external bearing *
- Rear Derailleur Shimano XT M8100, long cage
- Chain / Belt Shimano SLX M7100, 12 speed
Saddle
- Saddle Bontrager Arvada, steel rails, 138mm width
- Seat PostTranzX JD-YSP39, internal routing, 34.9mm, Size XS, S: 100mm travel, Size M, M/L: 150mm travel, Size L, XL: 170mm travel
Suspension
- Fork typesuspension fork
- Front suspension120mm
- Shock Fox Performance Float DPS, 3-position damper, 185mm x 50mm
- Fork ManufacturerFox
- Fork Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 120mm travel
Note on Product Images, Product Description and Specifications
Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.
Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.
The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.
Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.
Subject to alterations and errors.
