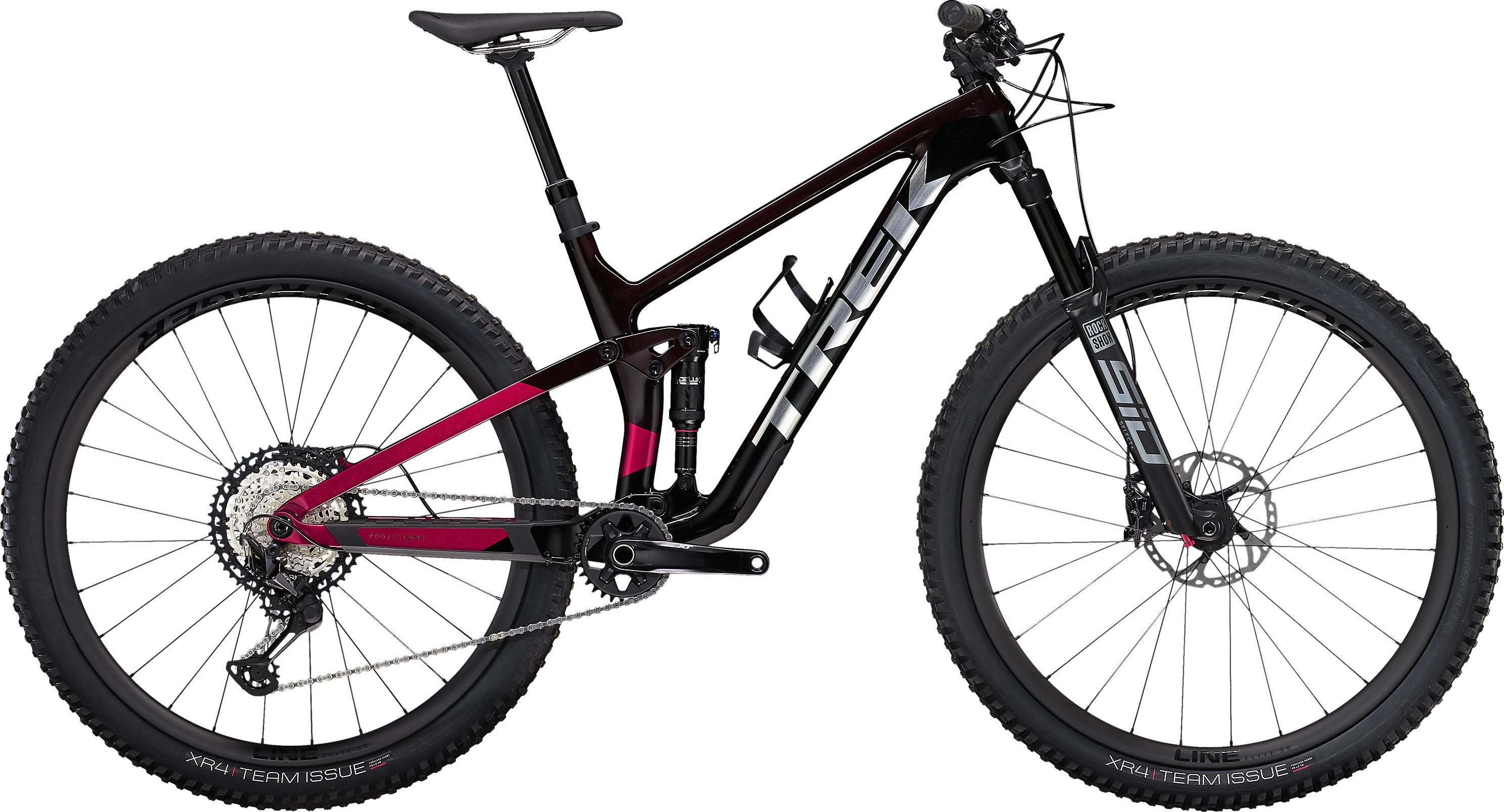

TrekTop Fuel 9.8 XT

Loading..

Questions and Answers

Carbon
Shimano Deore XT
29"
Diamond
Disc Brakes
Buy the trek at BikeExchange, your Marketplace for all things bike!

General

  • Frame OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
  • Weight*M - 12.61 kg / 27.81 lbs (with TLR sealant, no tubes)
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Brakes

  • Brake Shimano XT M8120 4-piston hydraulic disc
  • RotorsShimano RT76, 6-bolt, 160mm / Shimano RT76, 6-bolt, 180mm *

    • Wheels & Tires

  • Tires Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40''
  • Rear AxisBontrager Switch thru axle, removable lever
  • Rear Wheel Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
  • Front WheelBontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

    • Cockpit

  • Stem Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
  • GripsBontrager XR Trail Elite, nylon lock-on
  • HeadsetKnock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
  • HandlebarBontrager Line Pro, OCLV Carbon, 35mm, Size S: 15mm rise, 750mm width, Size M, M/L, L, XL: 27.5mm rise, 780mm width

    • Groupset

  • Chain / Belt Shimano Ultegra/XT M8100, 12 speed
  • CrankShimano XT M8120, 30T, 55mm chainline, Size S, M, M/L, L: 170mm length, Size XL: 175mm length
  • Cassette Shimano XT M8100, 10-51, 12 speed
  • Shifters Shimano XT M8100, 12 speed
  • Bottom Bracket Shimano SM-BB52, 73mm, threaded external bearing
  • Rear Derailleur Shimano XT M8100, long cage
  • GearingShimano Deore XT

    • Saddle

  • Saddle Bontrager Arvada, austenite rails, 138mm width
  • Seat PostBontrager Line Elite Dropper, MaxFlow, internal routing, 34.9mm, Size S: 100mm travel, 345mm length, Size M, M/L: 150mm travel, 440mm length, Size L: 170mm travel, 485mm length, Size XL: 200mm travel, 550mm length

    • Suspension

  • Fork RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
  • ShockRockShox Deluxe Ultimate RCT, 185mm x 50mm
  • Fork typesuspension fork
  • Front suspension120mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
