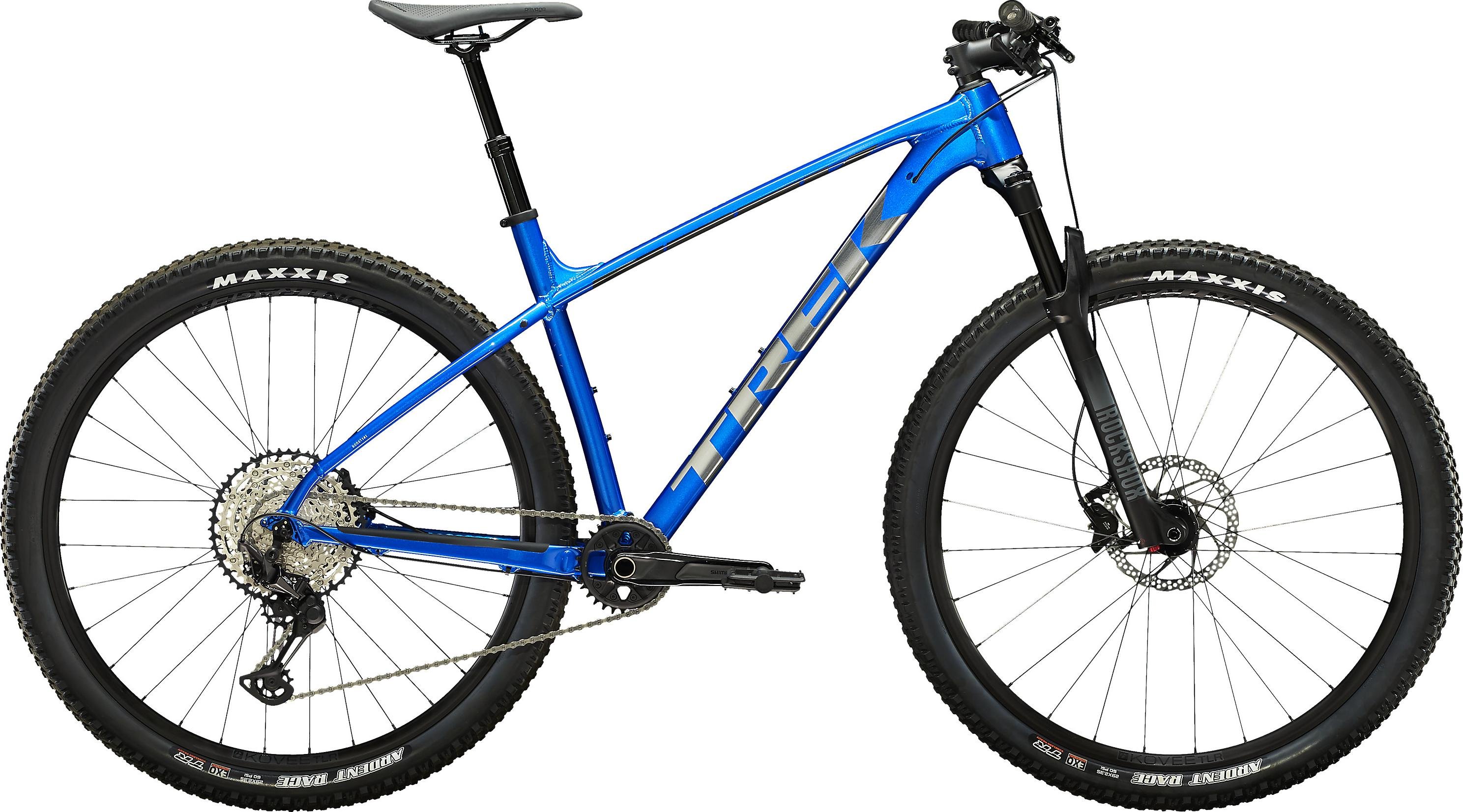

TrekX-Caliber 9

Loading..

Questions and Answers

Aluminum
Shimano Deore XT
29"
Diamond
Disc Brakes
Buy the X-Caliber 9 (29") at BikeExchange now, your marketplace for bicycles and accessories!

General

  • Frame Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR
  • Weight*M - 12.75 kg / 28.11 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Brakes

  • Brake Shimano hydraulic disc, MT4100 lever, MT410 caliper
  • RotorsShimano RT56, 6-bolt, 180mm / Shimano RT56, 6-bolt, 160mm *

    • Wheels & Tires

  • TiresMaxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, Size S: 27.5x2.35'', Size M , ML , L , XL , XXL: 29x2.35''
  • WheelsBontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve / Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve *
  • Rear Hub Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR
  • Front Hub Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

    • Cockpit

  • StemBontrager Elite, 31.8mm, Blendr compatible, 7 degree, Size S: 60mm length, Size M , ML: 70mm length, Size L: 80mm length, Size XL , XXL: 90mm length
  • GripsBontrager XR Trail Comp, nylon lock-on
  • HandlebarBontrager alloy, 31.8mm, Size S , M: 5mm rise, 720mm width, Size ML , L , XL , XXL: 15mm rise, 750mm width
  • Headset Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8'' top, 1.5'' bottom

    • Groupset

  • Chain / Belt Shimano SLX M7100, 12 speed
  • Pedals VP-536 nylon platform
  • Cassette Shimano SLX M7100, 10-51T, 12 speed
  • Shifters Shimano SLX M7100, 12 speed
  • Rear Derailleur Shimano XT M8100, long cage
  • CrankShimano MT611, 30T steel ring, alloy spider, 52mm chainline, Size S , M: 170mm length, Size ML , L , XL , XXL: 175mm length
  • Bottom Bracket Shimano SM-BB52, 73mm, threaded external bearing
  • GearingShimano Deore/SLX/XT, 12fach

    • Saddle

  • Saddle Bontrager Arvada, steel rails, 138mm width
  • Seat PostTranzX JD-YSP18, internal routing, 31.6mm, Size S , M: 100mm travel, 361mm length, Size ML , L , XL , XXL: 130mm travel, 425mm length

    • Suspension

  • ForkRockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, Boost110, 15mm Maxle Stealth, 100mm travel, Size S: 37mm offset, Size M , ML , L , XL , XXL: 42mm offset
  • Fork typesuspension fork
  • Front suspension100mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
