BombtrackARISE GEARED

Loading..

Questions and Answers

Steel
External Gearing
28" / 700c
Diamond
Disc Brakes

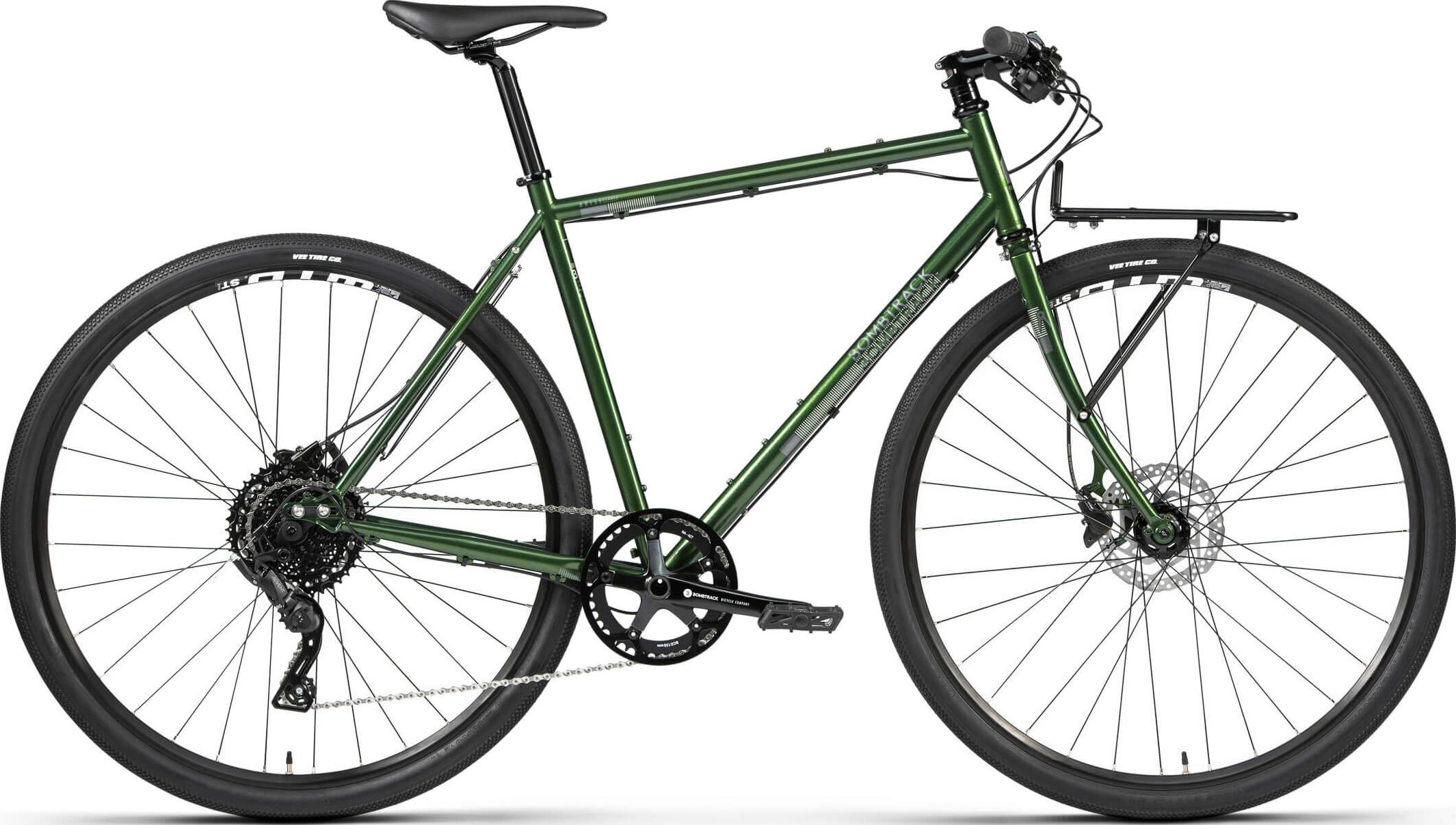

Introducing the Bombtrack ARISE GEARED 2021, a versatile bike that's ready to tackle your next adventure. Built with a strong and durable 4130 double butted crmo frame, this bike is designed to withstand both on-road and off-road conditions while maintaining a lightweight feel. The heat-treated front triangle not only adds extra strength but ensures that you can ride with confidence, whether you're ...Read more

General

  • Frame4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell
  • Weight*12.6 kg (size M)

    • Brakes

  • BrakeSHIMANO BR-MT200 post mount hydraulic disc brake with 160 mm rotors

    • Wheels & Tires

  • Rear HubBOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
  • Front HubBOMBTRACK ARC sealed hub, 6-bolt disc
  • Rear TireXS - S VEE TIRE SPEEDSTER 38-584 / M - XL VEE TIRE SPEEDSTER 40-622
  • Front TireXS - S VEE TIRE SPEEDSTER 38-584 / M - XL VEE TIRE SPEEDSTER 40-622
  • Rear WheelWTB ST i19 double wall, TCS 2.0, 32h
  • Front WheelWTB ST i19 double wall, TCS 2.0, 32h

    • Cockpit

  • StemBOMBTRACK ROAM forged aluminium stem, -7°
  • GripsBOMBTRACK SCROLL grips
  • HeadsetNECO H282 sealed external aheadset, 1.1/8''
  • HandlebarBOMBTRACK ORIGIN flat bar, 31.8 mm, 8° backsweep

    • Accessories

  • RackBOMBTRACK DECK frontrack, aluminium
  • Light-
  • Stand-
  • Fender-

    • Groupset

  • Chain / BeltKMC X9 chain, 1/2'' x 11/128'', 114L
  • PedalsWELLGO B109N flat pedal
  • CassetteMICROSHIFT ADVENT CS-H093 9-speed, 11 - 42 T
  • CranksetBOMBTRACK TAF19 aluminium crank, 24 mm spindle
  • ShiftersMICROSHIFT ADVENT SL-M819-R Shifter 1 x 9
  • ChainringsBOMBTRACK RIDGE aluminium chainring, narrow-wide, 42 T, incl. chainguard
  • Bottom BracketBSA sealed BB, external cups
  • Rear DerailleurMicroshift ADVENT RD-M6195M wide range, clutch
  • Front Derailleur-

    • Saddle

  • SaddleBOMBTRACK FUZZ
  • Seat PostBOMBTRACK BEECH 27.2 mm x 315 mm
  • Seat Post ClampBOMBTRACK ORIGIN forged aluminium seat clamp, 29.8 mm

    • Suspension

  • Fork4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
