BombtrackArise Geared

Loading..

Questions and Answers

Steel
External Gearing
28" / 700c
Diamond
Disc Brakes

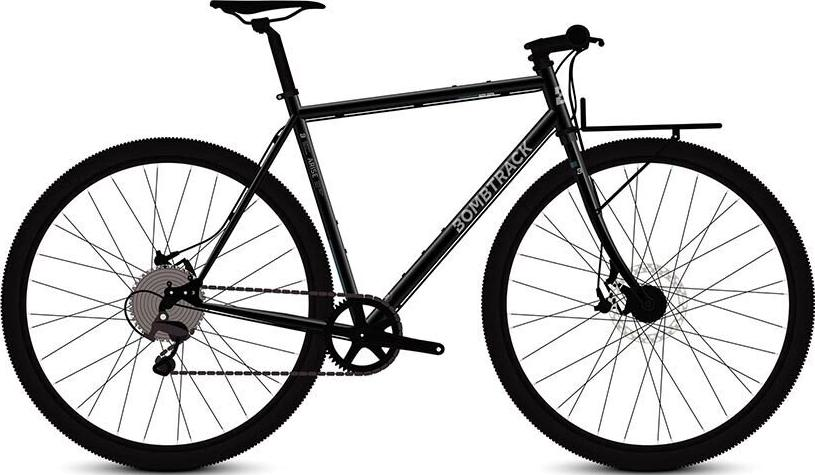

Introducing the Bombtrack Arise Geared 2023, a bike that strikes a fantastic balance between versatility, durability, and style. Designed for both beginners and experienced riders, it’s an ideal companion for those looking to explore city streets or tackle more adventurous off-road routes. With sleek engineering and practical features, the Arise Geared is a fantastic choice for anyone who values quality ...Read more

Brakes

  • BrakeSHIMANO BR-MT200 post mount hydraulic disc brake with 160 mm rotors
  • Brake LeverMICROSHIFT ADVENT SL-M819-R Shifter 1 x 9

Cockpit

  • StemBOMBTRACK ROAM forged aluminium stem, -7°
  • HandlebarBOMBTRACK ORIGIN flat bar, 31.8 mm, 8° backsweep
  • HeadsetNECO H282 sealed external aheadset, 1.1/8''
  • GripsBOMBTRACK SCROLL grips

General

  • Frame4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell

Groupset

  • Chain / BeltKMC X9 chain, 1/2'' x 11/128'', 114L
  • CassetteMICROSHIFT ADVENT CS-H093 9-speed, 11 - 42 T
  • CranksetBOMBTRACK TAF19 aluminium crank, 24 mm spindle
  • ShiftersSHIMANO BL-M200 hydraulic brake levers
  • Rear DerailleurMicroshift ADVENT RD-M6195M wide range, clutch
  • Bottom BracketBSA sealed BB, external cups
  • PedalsWELLGO B109N flat pedal
  • ChainringsBOMBTRACK RIDGE aluminum chainring, narrow-wide, 42 T, incl. chainguard

Wheels & Tires

  • HubFront: BOMBTRACK ARC sealed hub, 6-bolt disc // Rear: BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
  • TiresFront: XS - S VEE TIRE SPEEDSTER 38-584 / M - XL VEE TIRE SPEEDSTER 40-622 // Rear: XS - S VEE TIRE SPEEDSTER 38-584 / M - XL VEE TIRE SPEEDSTER 40-622
  • WheelsWTB ST i19 double wall, TCS 2.0, 32h

Saddle

  • SaddleBOMBTRACK FUZZ
  • Seat PostBOMBTRACK BEECH 27.2 mm x 315 mm

Suspension

  • Fork4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing

Disclaimer

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
